4W IP65 Mini-Dimmable Fire-Rated Downlight 4CCT
White finish, black optional trim
230v external driver with Fastfix connectors
30/60/90 minute rated
40mm cut-out / 55mm diameter / 38mm depth
380 lumens: 2700/3000/4000/6000K

4W IP65 White Mini-Downlight:
122501

Black Optional Trim:
184500

Download Image Sep 7, 2026, 08_58_37 AM.png

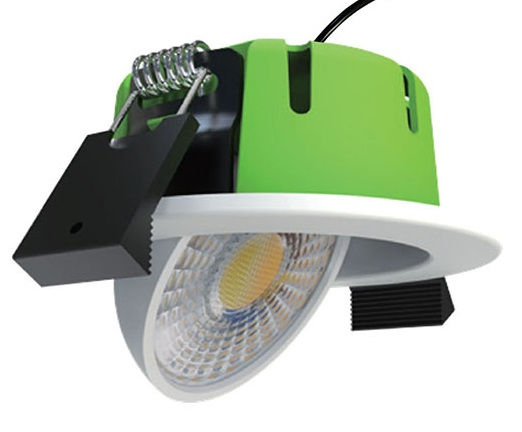

5W IP65 Dimmable Fire-Rated Gimbal 4CCT
White or black finish, 360 degree rotation
230v external driver with Fastfix connectors
30/60/90 minute rated
65mm cut-out / 84mm diameter / 50mm depth
550 lumens: 2700/3000/4000/6000K

5W IP65 White Gimbal Fitting:
103311

5W IP65 Black Gimbal Fitting:
103310

Download Image Sep 7, 2026, 08_58_37 AM.png

4 - 6 - 8W IP65 Dimmable Fire-Rated Downlight 4CCT
Fixed Or Gimbal Tilt Front Trim Options in White & Black
230v external driver with Fastfix connectors
30/60/90 minute rated
70mm cut-out / 87mm diameter / 33mm depth
400 - 600 - 800 lumens: 2700/3000/4000/6000K

4 -6 - 8W IP65 White Fixed Trim:
130301
Optional Trims:
Black Fixed 180300
White Gimbal Tilt 183301
Black Gimbal Tilt 183300

Download Image Sep 7, 2026, 08_58_37 AM.png

4 - 6 - 8W IP65 Dimmable Fire-Rated Downlight 3CCT
White finish, optional black trim
230v DOB with Fastfix connectors
30/60/90 minute rated; i-joist approved
70mm cut-out / 95mm diameter / 52mm depth
400 - 600 - 800 lumens: 3000/4000/6000K

4-6-8W IP65 White D/light:
132301

Black Optional Trim:
184300

Download Image Sep 7, 2026, 08_58_37 AM.png

6 - 8 - 10W IP65 Dimmable Fire-Rated Downlight 3CCT
White finish, optional black trim
230v DOB with Fastfix connectors
30/60/90 minute rated: i-joist approved
70mm cut-out / 110mm diameter / 57mm depth
600 - 800 - 1000 lumens: 3000/4000/6000K

4-6-8W IP65 White D/light:
132401

Black Optional Trim:
184400

Download Image Sep 7, 2026, 08_58_37 AM.png

GU10 Fire-Rated Gimbal with Twist-Fit Locking Ring
White, Satin Silver, Chrome
Die-cast locking ring & trim, steel body
230v for GU10 LED lamps
30/60/90 minute rated
84mm cut-out / 92mm diameter / 145mm depth

Matt White: 102301

Satin Silver: 102303

Chrome: 102302

Download Image Sep 7, 2026, 08_58_37 AM.png

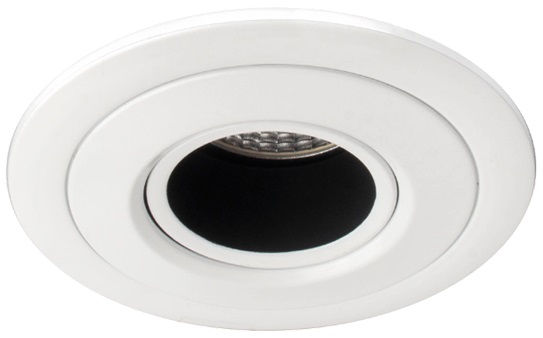

GU10 Fire-Rated Downlight with Anti-Glare Baffle
White or Satin Silver
Removable inner ring for easy lamp replacement
230v for GU10 LED lamps
30/60/90 minute rated
85mm cut-out / 95mm diameter / 145mm depth

Matt White: 102401

Satin Silver: 102403

Download Image Sep 7, 2026, 08_58_37 AM.png

IP65 GU10 Fire-Rated Downlight
White, Black, or Satin Silver
230v for GU10 LED lamps
30/60/90 minute rated
73mm cut-out / 85mm diameter / 107mm depth

White: 110001

Satin Silver: 110002

Black: 110000

Download Image Sep 7, 2026, 08_58_37 AM.png
